E+PLC

Price range: € 268.00 through € 1'552.00 excluding VAT (price subject to change, please request a quote)

Geavanceerde regeling, data-management en visualisatie in een modulaire oplossing

Een modulair opgebouwde PLC die gebruik maakt van IEC61131-3 CODESYS® platform en voldoet aan de strikte richtlijnen van de thermische- en andere industrieën.

Voor een correcte code, prijs en levertermijn: check met sales@pics.be

Send me a quote
SKU: EPLC400 Category: Tags: , , , , , , ,

E+PLC400 Combinatie-PLC

Geavanceerde controle, databeheer en visualisatie in een modulaire platformoplossing

  • Een modulaire combinatie-PLC met selecteerbare basisafmetingen die bij uw toepassing passen
  • Nauwkeurige regeling, instelpuntprogrammering en manipulatiebestendige registratie, volledig geïntegreerd in een PLC-toepassing
  • Minimaliseert de engineering- en inbedrijfstellingskosten en maximaliseert de procesprestaties
  • Ingebouwde geavanceerde PID- en setpoint-programmeerfuncties
  • Continue en batchregistratie
  • Visualisatie op afstand doorzoekbaar vanaf meerdere apparaten
  • Meer verwerkingskracht en I/O maken het geschikt voor grotere machines met complexere functionaliteit
  • Groter geheugen maakt uitgebreider gebruik van ladderlogica en sequencing-programma’s mogelijk

Description

E+PLC400 is a modular PLC designed to meet the stringent regulatory requirements of thermal and other advanced manufacturing industries.

By utilizing the open industry standard IEC61131-3 CODESYS® platform, E+PLC enables simplified engineering through a single integrated programming and visualization environment. Includes advanced function block libraries for:

  • Heat treatment applications
  • Control and data recording
  • ‘OEM security’ and customization

Unique PID control functions designed by EurothermTM are built in, enabling faster commissioning and tighter control of the overall process, as well as easing conformance to regulatory and end-customer requirements, including:

  • 6 PID sets to help maintain tight control at specific setpoints
  • Intelligent auto-tune for optimal control and commissioning
  • Specialized cutback function for overshoot control

Data management embedded in E+PLC helps manufacturers meet strict regulatory process data requirements, including:

  • Eurotherm tamper-resistant UHH file format (a superior alternative to editable csv files commonly found in PLCs)

Ethernet communication offers connectivity to IIoT (Industrial Internet of Things) and Industry 4.0 technologies.

To assist with operational efficiency, E+PLC400 has an embedded webserver for remote viewing on mobile devices.

E+PLC

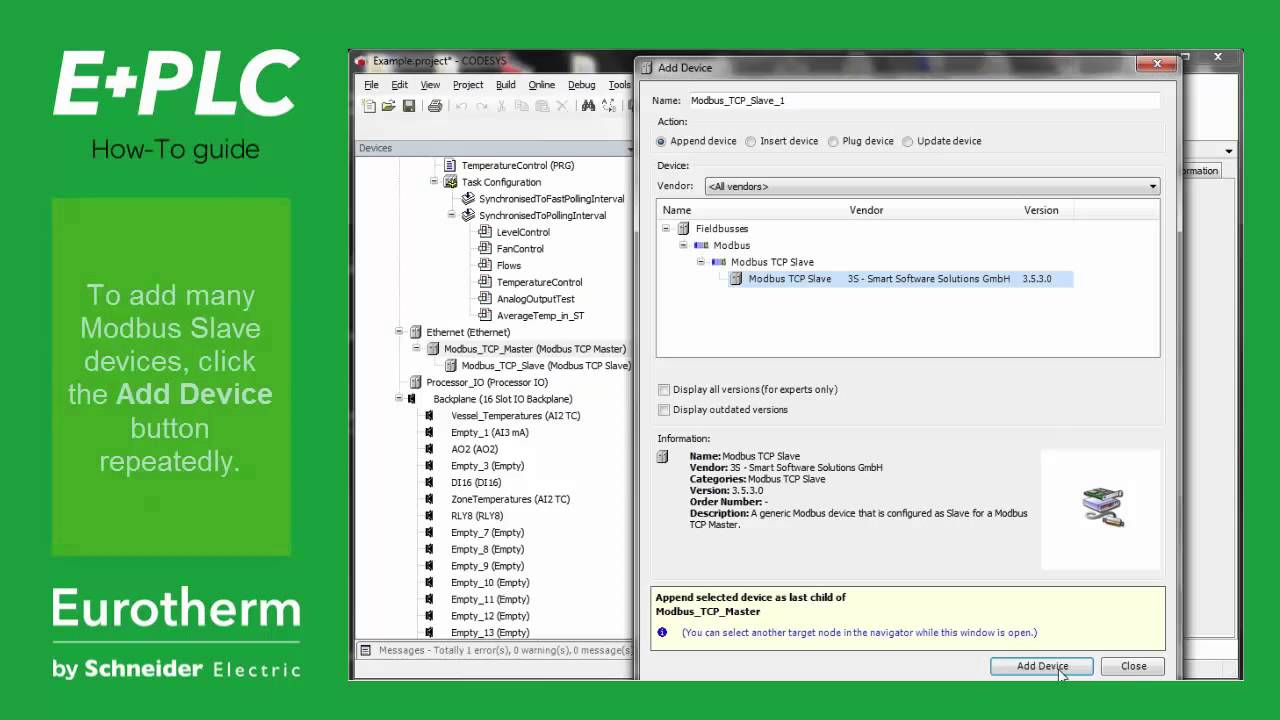

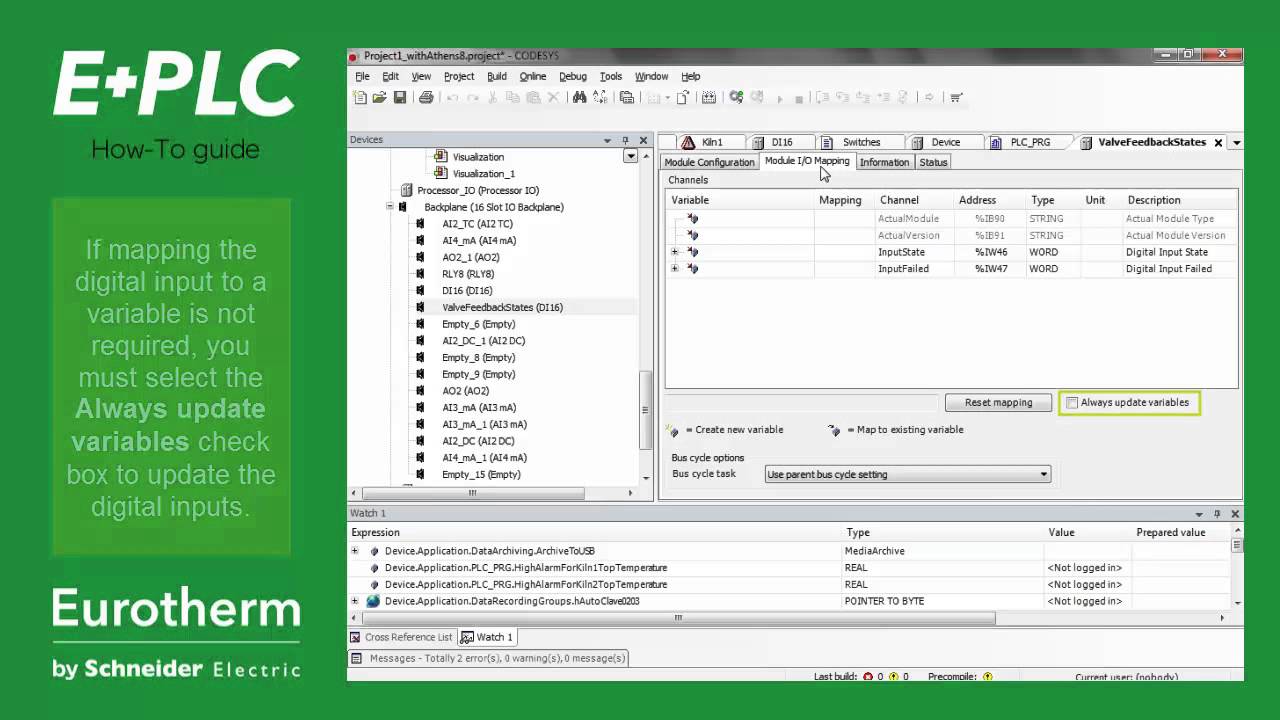

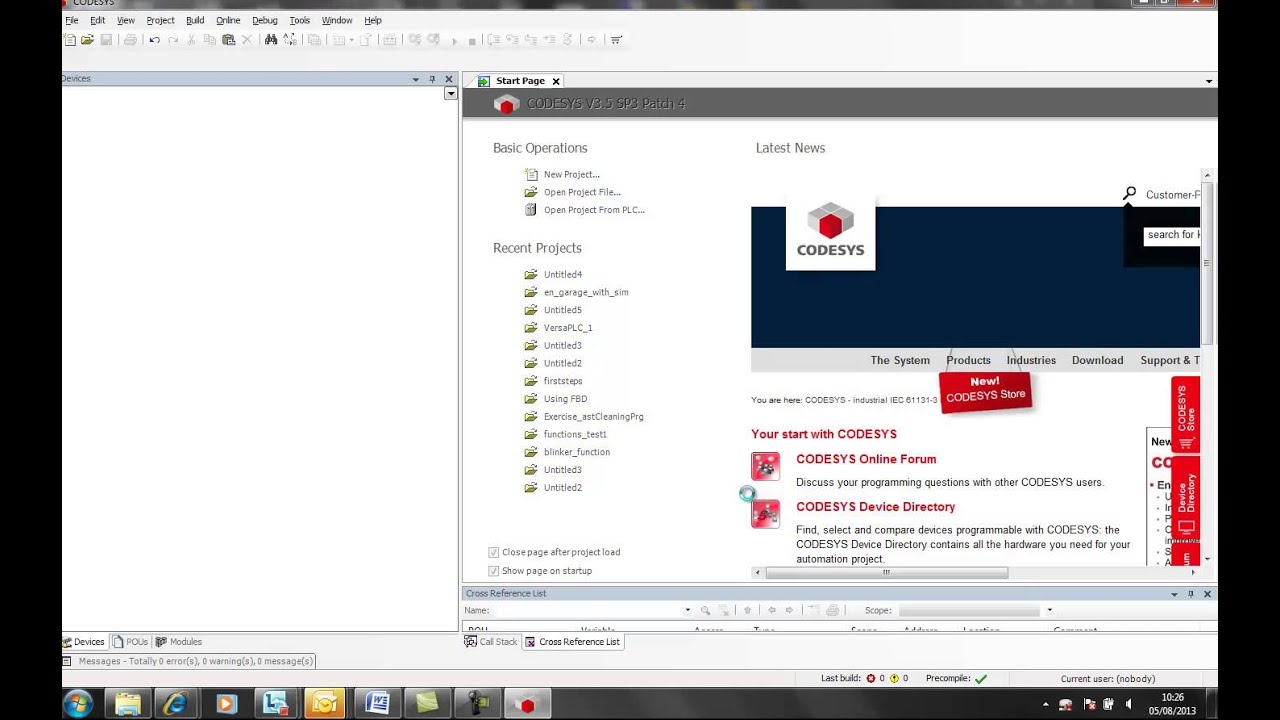

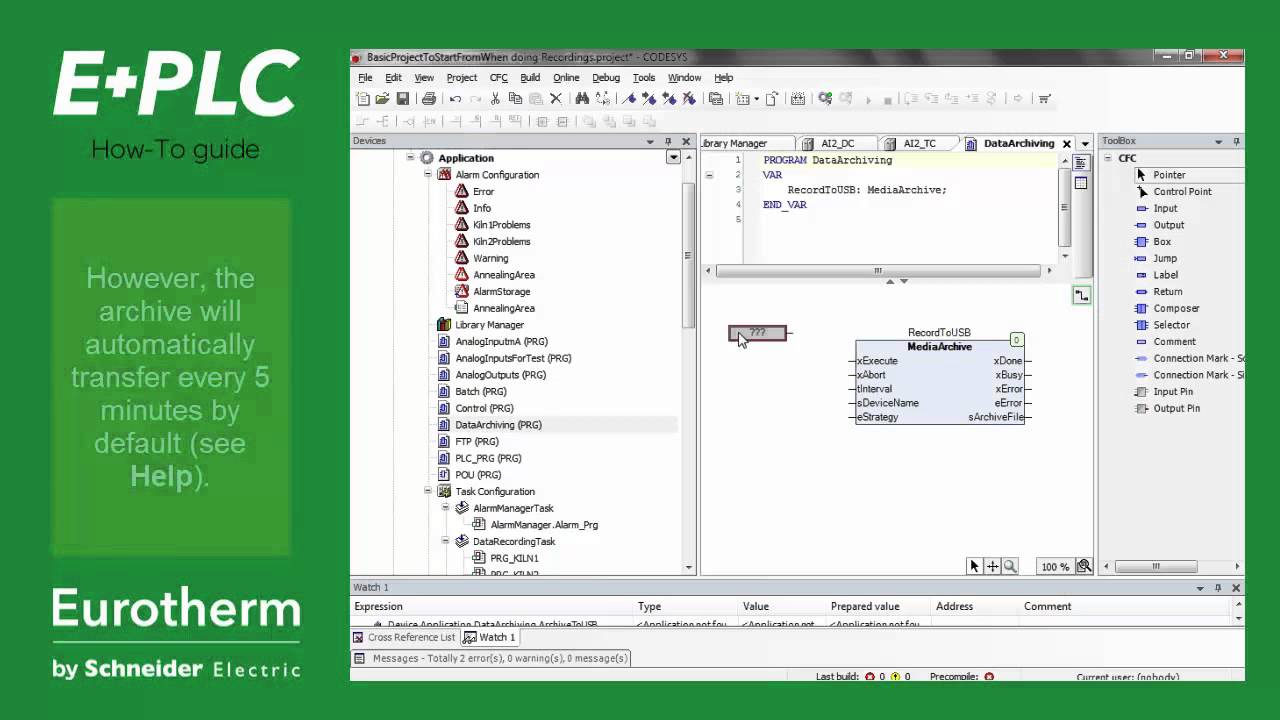

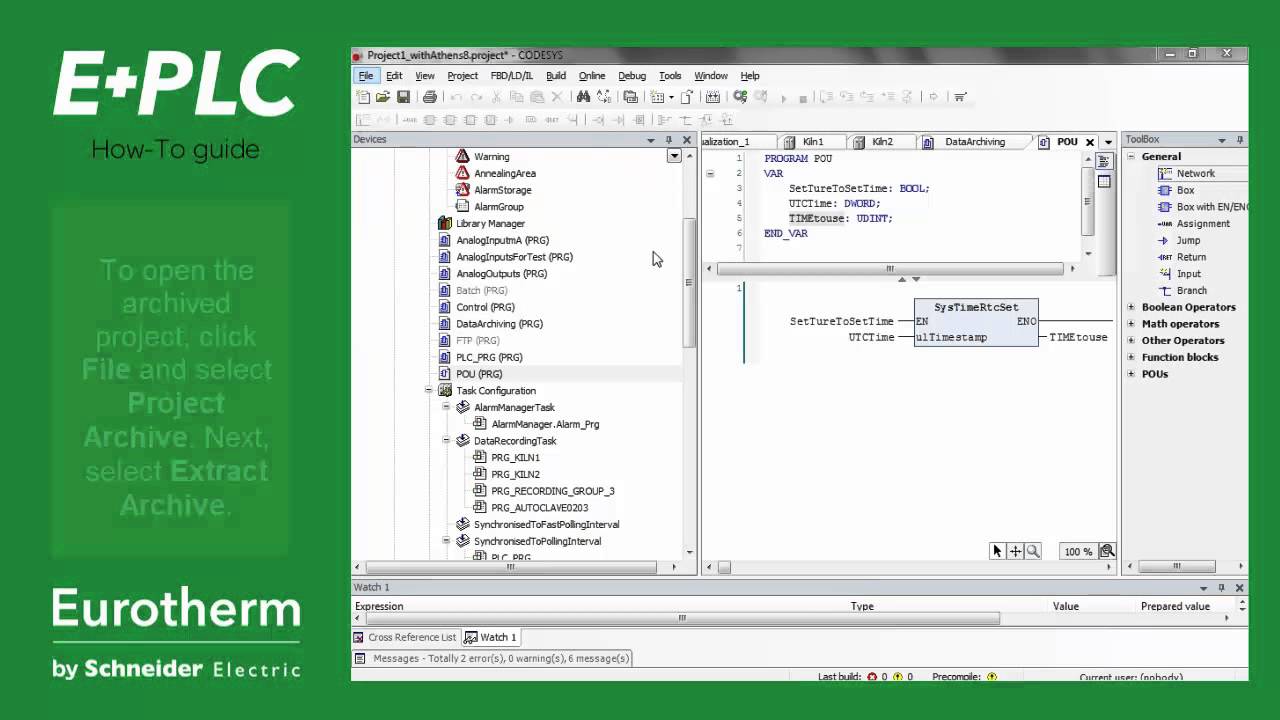

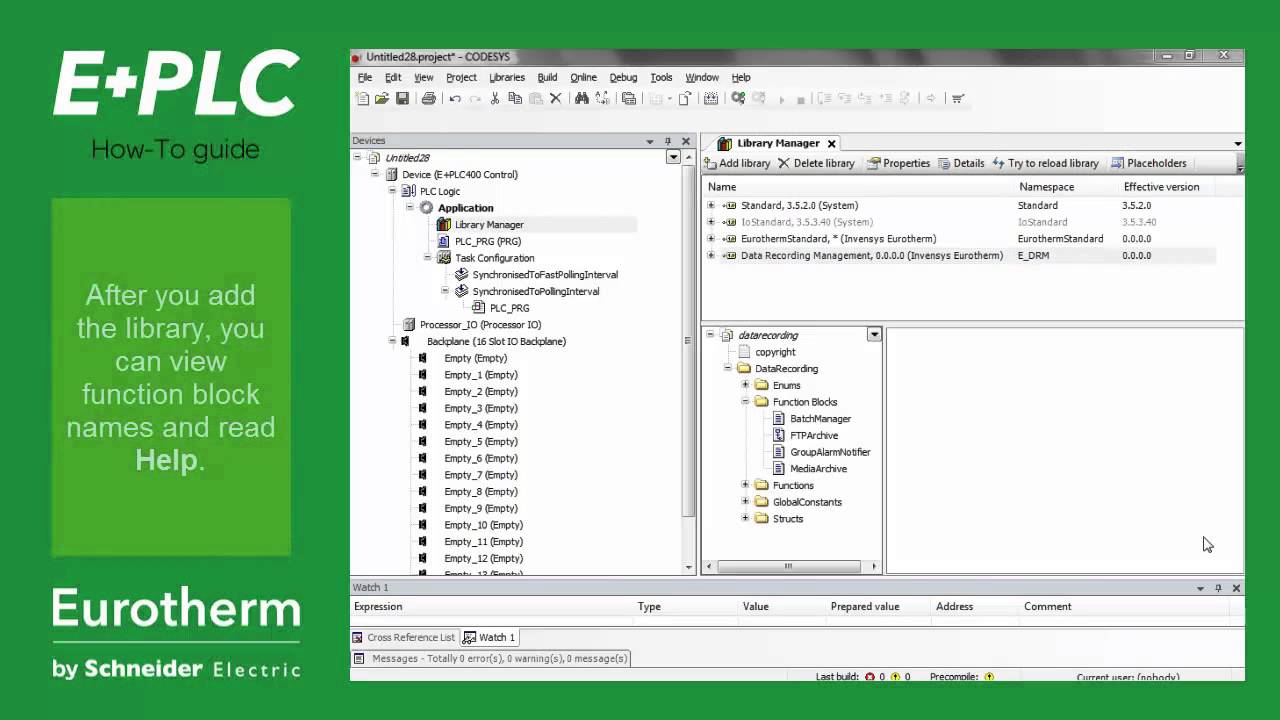

Playlist

6 Videos
Weight 2.3 kg
Dimensions 128 × 96 × 96 mm
Model

(EPLC400) Programmable Logic Controller
Base Size

(00) 0 Way Base (No I/O slots), (04) 4 Way Base (4 I/O slots), (08) 8 Way Base, 8 IO Slots, (16) 16 Way Base (16 I/O slots)
Battery required

(BATT) Battery Fitted €17, (NOBATT) Battery Not Fitted
IO slot 1

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 2

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 3

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 4

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 5

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 6

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 7

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 8

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 9

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 10

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 11

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 12

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 13

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 14

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 15

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
IO slot 16

(BLANK) Blank Terminal Unit, (NONE) No I/O Module Fitted, (AI2-DC) 2 Channel Analogue IP Module, (AI2-TC) 2 Channel Isolated Analogue IP CJC, (AI2-MA) 2 Channel Isolated Analogue IP mA, (AI3) 3 channel Isolated 4-20mA Tx PSU, (AI4-TC) 4 Channel Isolated in Pairs TC/CJC, (AI4-MA) 4 Channel Isolated in Pairs mA IP, (AI4-MV) 4 Channel Isolated in Pairs DC IP, (AO2) 2 Channel Isolated DC Output Module, (RLY8) 8 Channel Relay Output Module, (DI6-230V) 6 Channel VH Logic 230Vac IP, (DI6-115V) 6 Channel VH Logic 115Vac IP, (DO16) 16 Channel Digital Output Module, (DI16) 16 Channel Digital Input Module, (ZI) Zirconia Input Module, (AI8-RT) 4 Channel Isolated RTD, (AI8-TC) 8 Channel TC with CJC, (AI8-MA) 8 Channel mA Input Module, (AI8-FMA) Fast 4 Channel Isolated mA 20ms
COMMUNICATIONS OPTIONS 1 to 3

(NONE): Modbus TCP Master/Slave, RTU or TCP(Default)
